SVG Features

ZooUI provides comprehensive support for Scalable Vector Graphics (SVG) files, allowing users to add, modify, and manipulate vector graphics within the zooming user interface. This document covers all SVG-related features available in ZooUI.

Overview

SVG (Scalable Vector Graphics) is an XML-based vector image format that supports interactivity and animation. In ZooUI, SVG files can be:

  • Added to scenes as media objects

  • Modified with custom colors and line thickness

  • Embedded in scene files for portability

  • Rendered at any zoom level without quality loss

Key Features

  1. SVG Picker Dialog: Browse and select SVG files from the zooui/data/SVG/ directory

  2. Color Customization: Apply any color to SVG strokes and fills

  3. Thickness Adjustment: Modify line/stroke thickness

  4. Modification Dialog: Edit existing SVG objects in the scene

  5. SVG Cache: Efficient storage of modified SVG files

  6. Embedding Support: Modified SVGs embedded in scene files

Adding SVG Objects

There are two main ways to add SVG objects to your ZooUI scene:

Method 1: Using the SVG Picker Dialog

  1. Open the SVG picker dialog from the main menu or toolbar

  2. Browse available SVG files in the zooui/data/SVG/ directory

  3. Select an SVG file to preview it

  4. Choose a color from the color history or enter a custom hex color

  5. Adjust the stroke thickness if needed

  6. Click “Apply Changes” to preview modifications

  7. Click “OK” to add the modified SVG to your scene

Method 2: Direct File Import

SVG files can also be added directly by: - Dragging and dropping SVG files into the ZooUI window - Using the “Add Media” dialog to select SVG files - Loading scene files that contain embedded SVG objects

SVG Picker Dialog

The SVG Picker Dialog (OpenSVGPickerInputDialog) provides an intuitive interface for selecting and customizing SVG files:

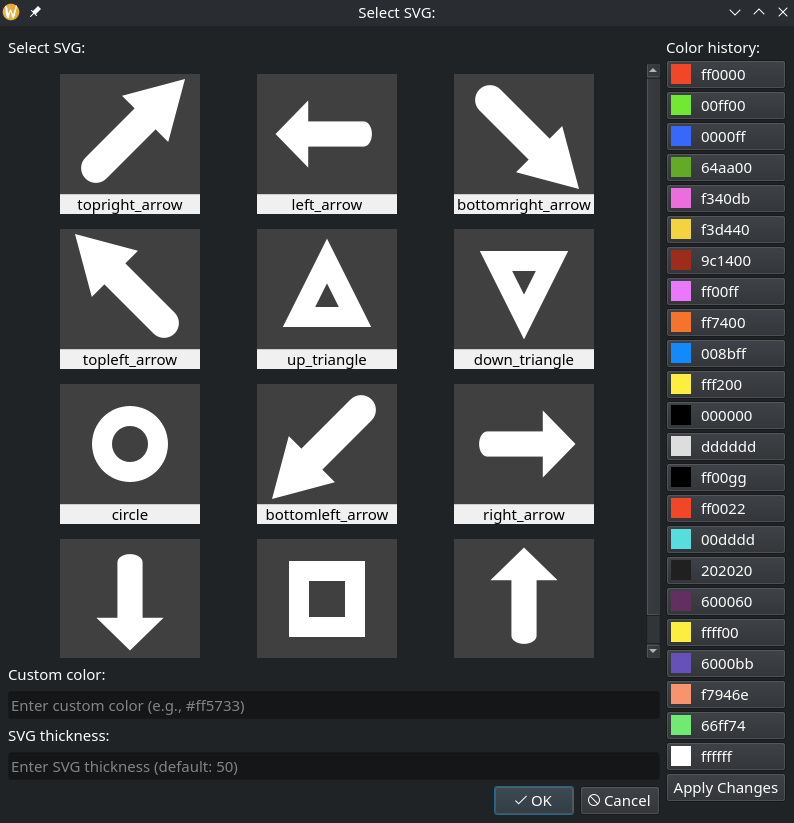

SVG Picker Dialog Interface

Interface Components:

  1. SVG Preview Grid: Thumbnail previews of all available SVG files

  2. Color History: Recently used colors for quick selection

  3. Custom Color Input: Enter any hex color (with or without #)

  4. Thickness Input: Adjust stroke width (default: 50)

  5. Apply Changes Button: Preview modifications before adding

  6. OK/Cancel Buttons: Add to scene or cancel operation

  7. Keyboard Shortcut: Press Ctrl+Enter to accept the dialog (equivalent to clicking OK)

Available SVG Files:

ZooUI includes a collection of basic shapes in the zooui/data/SVG/ directory:

  • Arrows (various directions)

  • Geometric shapes (circles, squares, triangles)

  • Basic icons and symbols

  • Custom shapes (add your own SVG files)

Modifying Existing SVG Objects

Existing SVG objects in your scene can be modified using the Modify SVG Dialog (ModifySVGInputDialog):

To modify an existing SVG object:

  1. Select the SVG object in your scene

  2. Right-click and choose “Modify SVG” from the context menu

  3. Or use the “Modify” option from the object properties panel

Modify Dialog Features:

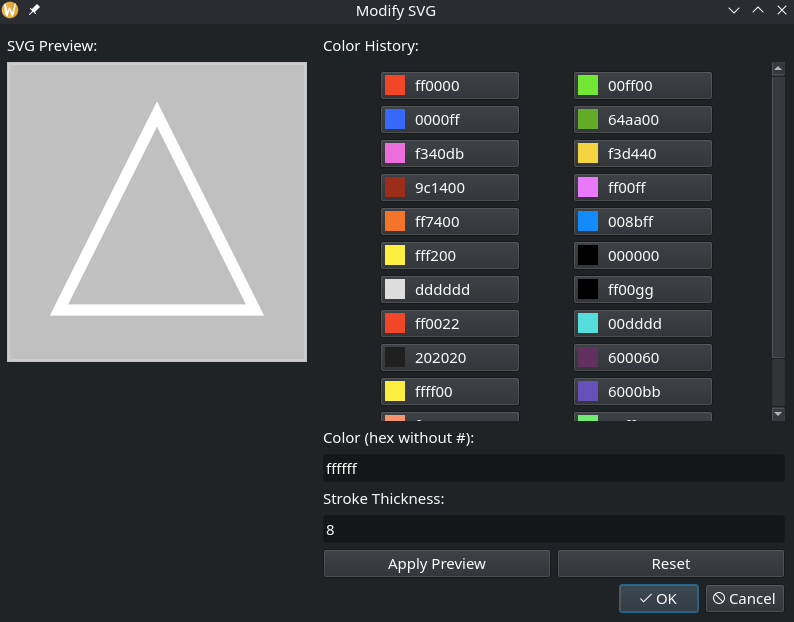

SVG Modify Dialog Interface

  1. SVG Preview: Live preview of the SVG with current modifications

  2. Color Selection: Choose from color history or enter custom color

  3. Thickness Adjustment: Modify stroke width

  4. Apply Preview Button: See changes before applying

  5. Reset Button: Revert to original SVG appearance

  6. OK/Cancel: Apply changes or cancel

  7. Keyboard Shortcut: Press Shift+Enter to accept changes (equivalent to clicking OK)

Note: The modify dialog is designed for simple shapes (arrows, circles, squares, triangles) added via the SVG picker dialog. For complex SVG files added from other sources, default values (black color, stroke-width=10) will be used with a warning message.

Color Management

ZooUI maintains a color history system that persists across sessions:

Color History Features:

  • Stores up to 24 recently used colors

  • Colors saved in ~/.local/share/zooui/colorstore/color_list.txt

  • Colors shared between SVG picker and modify dialogs

  • Default colors: white (ffffff), red (ff0000), green (00ff00), blue (0000ff)

Custom Color Input:

  • Enter hex colors with or without # prefix (e.g., ff5733 or #ff5733)

  • Color names are supported (e.g., red, blue, green)

  • Invalid colors default to black (000000)

SVG Cache System

ZooUI uses an efficient SVG cache system to store modified SVG files:

Cache Features:

  • Location: ~/.cache/zooui/svg/ directory (temporary storage)

  • Format: svg_{8_char_sha1_hash}.svg files

  • Deduplication: Same content = same hash (saves storage)

  • Flat Structure: All files in single directory (no subfolders)

How it works:

  1. When you modify an SVG (color/thickness), ZooUI creates a modified version

  2. The modified content is hashed (SHA1, first 8 chars)

  3. File is saved as svg_{hash}.svg in cache directory

  4. SVG objects reference the cache hash instead of original file

  5. Cache files are automatically cleaned up on system restart

Benefits:

  • Fast retrieval of modified SVGs

  • No duplication of identical modified files

  • Efficient storage for frequently used modifications

  • Enables SVG embedding in scene files

SVG Embedding in Scene Files

Modified SVG objects can be embedded directly in ZooUI scene (.pzs) files:

Embedding Behavior:

  • Modified SVGs: Embedded as XML content with embedded: prefix

  • Unmodified SVGs: Keep file references (not embedded)

  • Large SVGs: Warning shown for files >1MB (configurable)

Embedding Example:

{
    "objects": [
        {
            "type": "SVGMediaObject",
            "media_id": "embedded:<?xml version=\"1.0\"?><svg>...</svg>",
            "position": [100, 200, 0],
            "is_modified": true,
            "original_file_path": "/path/to/original.svg"
        }
    ]
}

Benefits of Embedding:

  1. Portability: Scene files can be shared without external SVG files

  2. Version Control: All modifications stored in single file

  3. Backup Safety: No risk of losing modified SVG files

  4. Collaboration: Easy sharing of complete scenes

SVG Utilities

ZooUI includes specialized utilities for working with SVG files:

Arrow Utilities (``svgarrowutils.py``):

  • Detect arrow shapes in SVG files

  • Elongate arrows while maintaining proportions

  • Handle arrowhead positioning and scaling

Shape Utilities:

  • svgcircleutils.py: Circle manipulation utilities

  • svgsquareutils.py: Square/rectangle utilities

  • svgtriangleutils.py: Triangle manipulation utilities

Common Use Cases:

  1. Diagram Creation: Add arrows between objects

  2. Annotation: Use shapes to highlight areas

  3. Flow Charts: Create visual workflows with connected shapes

  4. Technical Drawing: Add precise geometric shapes

Best Practices

For Optimal SVG Performance:

  1. Use Simple Shapes: Complex SVGs with many paths render slower

  2. Limit Embedding: Only embed modified SVGs, keep unmodified as file references

  3. Reuse Colors: Use color history for consistency across objects

  4. Batch Modifications: Make all changes in one dialog session

For Scene Portability:

  1. Embed Modified SVGs: Ensures scenes work on other systems

  2. Keep Originals: Maintain original SVG files for future modifications

  3. Document Colors: Note down custom color codes used in complex scenes

  4. Test Loading: Verify scenes load correctly after embedding

Troubleshooting:

  • SVG Not Rendering: Check if file is valid XML, try opening in browser

  • Colors Not Applying: Some SVGs use CSS classes instead of inline attributes

  • Performance Issues: Reduce number of SVG objects or simplify complex SVGs

  • Cache Issues: Clear ~/.cache/zooui/svg/ directory and restart ZooUI

Advanced Usage

Programmatic SVG Addition:

SVG objects can be added programmatically:

from zooui.objects.scene.scene import Scene
from zooui.objects.mediaobjects.svgmediaobject import SVGMediaObject

# Create scene
scene = Scene()

# Add SVG from file
svg_from_file = SVGMediaObject("path/to/shape.svg", scene)
svg_from_file.pos = (100, 200)
scene.add(svg_from_file)

# Add SVG from cache hash
svg_from_cache = SVGMediaObject("svg_abc12345", scene)
svg_from_cache.pos = (300, 400)
scene.add(svg_from_cache)

Custom SVG Directory:

To use your own SVG files:

  1. Create a zooui/data/SVG/ directory in your ZooUI installation

  2. Add .svg files to this directory

  3. Restart ZooUI to see new files in the picker dialog

SVG Cache Management:

Advanced users can manage the SVG cache:

# List cached SVG files
ls ~/.cache/zooui/svg/

# Clear cache (will be recreated as needed)
rm -rf ~/.cache/zooui/svg/

# Monitor cache size
du -sh ~/.cache/zooui/svg/

Examples

Example 1: Creating a Simple Diagram

  1. Add a circle SVG, color it blue, thickness 10

  2. Add a square SVG, color it red, thickness 15

  3. Add an arrow SVG between them, color it black, thickness 8

  4. Position objects to create a flow diagram

Example 2: Annotation Workflow

  1. Load an image into ZooUI

  2. Add triangle SVGs to highlight important areas

  3. Color triangles yellow with transparency

  4. Add text labels near triangles

  5. Save scene with embedded SVG annotations

Example 3: Technical Drawing

  1. Create grid background

  2. Add precise geometric shapes (circles, squares, triangles)

  3. Use consistent colors for different element types

  4. Add dimension lines using arrow SVGs

  5. Export as high-resolution image

Limitations

  1. Complex SVGs: Very complex SVGs with gradients, filters, or animations may not render correctly

  2. CSS Styling: External CSS stylesheets in SVG files are not supported

  3. JavaScript: SVG files with embedded JavaScript will not execute

  4. External References: Images or fonts referenced in SVG may not load

  5. File Size: Very large SVG files (>5MB) may cause performance issues

Future Enhancements

Planned improvements for SVG support:

  1. SVG Library: Expanded collection of pre-made SVG shapes

  2. Layer Support: SVG objects with multiple editable layers

  3. Group Operations: Modify multiple SVG objects simultaneously

  4. Export Options: Export SVG objects as standalone files

  5. Template System: Save and reuse SVG modification templates

See Also

  • ../zooui/svgmediaobject - SVGMediaObject API documentation

  • ../zooui/svgpickerinputdialog - SVG Picker Dialog API

  • ../zooui/modifysvginputdialog - Modify SVG Dialog API

  • Object System - Object system overview
